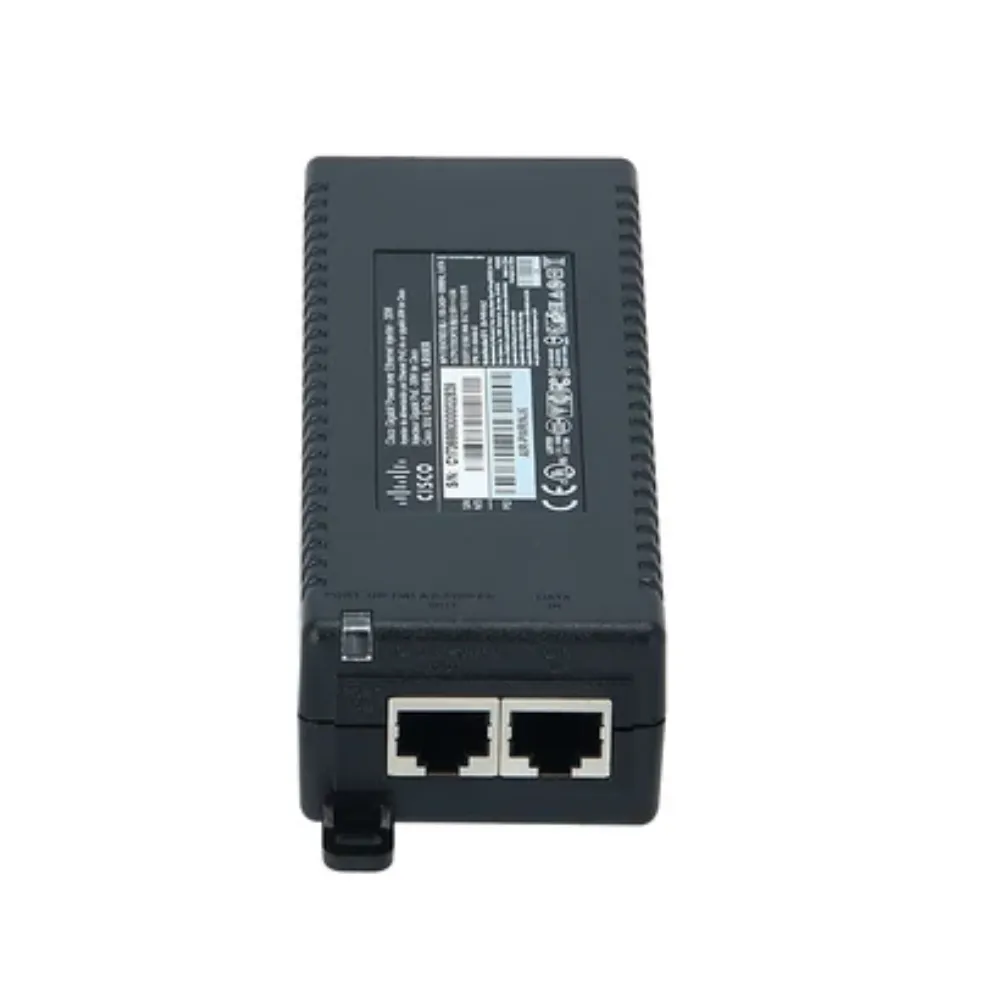

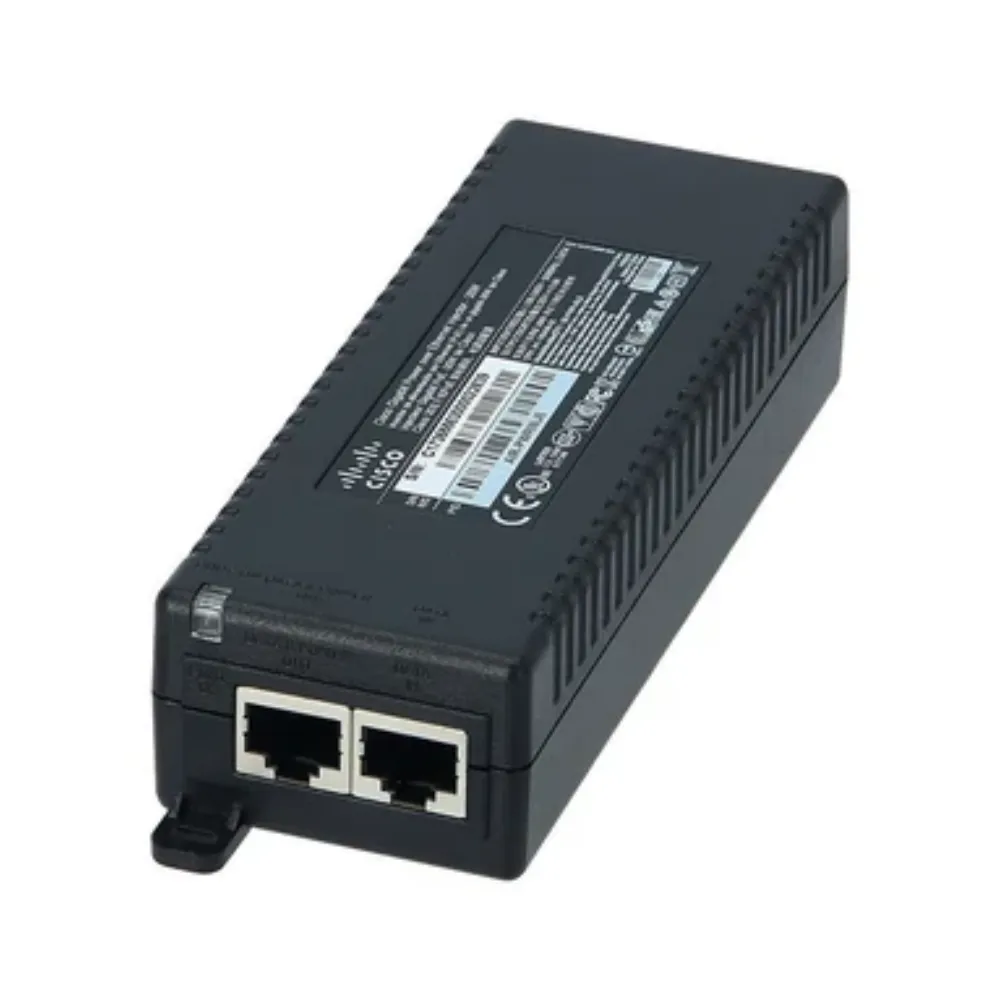

Cisco Aironet AIR-PWRINJ6 | 802.3at PoE+ | 30W | Gigabit 10/100/1000Mbps | 55V DC Output | Single-Port | White

Cisco Aironet AIR-PWRINJ6 802.3at PoE Injector

The Cisco Aironet AIR-PWRINJ6 provides a simple and reliable way to deliver both network data and electrical power to compatible Cisco Aironet wireless access points. This single-port PoE injector supports IEEE 802.3at PoE+ and delivers up to 30W to the connected device. It works as an alternative to a PoE-capable network switch, making it useful when an existing Ethernet switch does not provide inline power. Cisco specifically designed the AIR-PWRINJ6 for access points that require 802.3at power input.

30W IEEE 802.3at PoE+ Power

The AIR-PWRINJ6 supplies up to 30W of user-port power and uses a 55V DC output. IEEE 802.3at compliance makes the injector suitable for compatible PoE+ devices and Cisco Aironet access points that need higher power than standard 802.3af deployments. Cisco also notes compatibility with 802.3af systems, which gives the injector additional flexibility in supported installations.

Gigabit Ethernet Data Connectivity

The injector supports 10/100/1000Mbps Ethernet, allowing network traffic to pass through at Gigabit Ethernet speeds. Connect the data-in port to an Ethernet switch, hub or network using Cat5 or better Ethernet cabling. The second RJ-45 port sends both network data and PoE power to the access point.

Simple Access Point Power Deployment

Organizations can use the Cisco AIR-PWRINJ6 when a wireless access point sits in a location without direct access to a PoE switch. The injector receives network connectivity from the existing Ethernet infrastructure and adds power before the connection reaches the access point. This approach can simplify deployments in offices, network closets and other indoor wireless installations.

Wide 100–240V AC Input

The built-in power supply accepts 100–240V AC input at 50–60Hz. Cisco specifies an input current of up to 0.8A at 100–240V AC. This wide input range makes the injector suitable for a variety of electrical environments.

Shielded RJ-45 Connectivity

The AIR-PWRINJ6 uses shielded RJ-45 connectors with EIA 568A and 568B support. The Ethernet interface provides the physical connection between the network, injector and compatible access point. Use Category 5 or better Ethernet cable for the network connection.

Compact White Design

The White Cisco Aironet Power Injector uses a compact enclosure that suits indoor network installations. Cisco documents two supplier variants with minor cosmetic differences while maintaining functional equivalence. Depending on the supplier version, the dimensions measure approximately 5.18–6.5 cm wide, 3.4–3.6 cm high and 14 cm long.

Built-In Status Indicator

A status LED provides a convenient visual indication of the injector’s operating condition. The compact design also includes mounting tabs for suitable installations. Cisco recommends keeping the injector and its AC power cable separate rather than stacking or bundling them to help prevent overheating.

Indoor Enterprise Networking Solution

The Cisco AIR-PWRINJ6 works well in enterprise wireless deployments where compatible Aironet access points need PoE+ power. It can help network administrators extend access point placement without replacing an existing Ethernet switch solely to gain PoE capability. The injector is not weatherproof, so Cisco recommends indoor use rather than outdoor installation.

Reliable PoE Infrastructure

Cisco specifies an MTBF of 100,000 hours at 25°C. The injector also meets applicable IEEE 802.3at, CE, WEEE and China RoHS requirements, along with FCC Part 15 Class B and other listed regulatory standards.

Buy Cisco AIR-PWRINJ6 in UAE

Need a dependable PoE+ solution for a compatible Cisco Aironet access point? Buy the Cisco Aironet AIR-PWRINJ6 from KNH Tech Store for 30W IEEE 802.3at power, Gigabit Ethernet connectivity and a compact enterprise networking design. Order online today for delivery across Dubai and the UAE.
